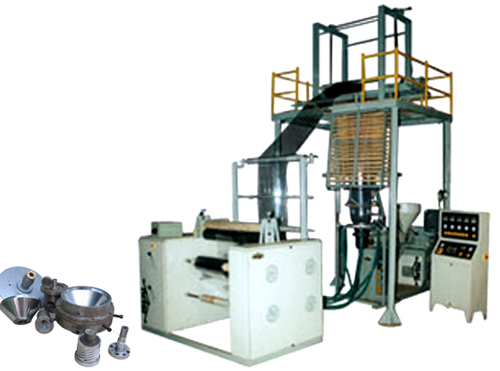

Blown Film Plant For R-PVC / S-PVC / LDPE / HDPE /HM-HDPE ...

Mono Layer Film Plants
Models	TH-50	TH-65	TH-75	TH-90
Screw Dia.mm	50	65	75	90
Main Motor KW	9.3	15	22.4	37.0
Die type	Spiral	Spiral	Spiral	Spiral
Lay flat witdh	700	950	1350	1850
*Max.Output	32-37	50-60	80-90	130-150
Nip Roller	800	1100	1500	2000
Winder Type	Surface	Centre	Centre	Centre
Connected Load Kw	18.00	28.00	41.5	64.00
* Spiral Die head with Rotating die, Maintenance Free slip-ring & brush less Also available.
