Blown Film Plants sincerely implements the attributes of corporate performance, machineries, and after-sales customer care. We are closely interact with the client—before, during, and after the sale of the machinery.

Plants having Extruder on rotating plate farm with helical gear box, temperature & control panel, Two take up units, Total three sets of Nip rollers r

Blown Film Plants And Compact Film Plants ...






Heat Shrink Film Plant RPVC / LDPE ...

HEAT SHRINK FILM PLANT RPVC/LDPE Exporter, HEAT SHRINK FILM PLANT RPVC/LDPE Manufacturer, HEAT SHRINK FILM PLANT RPVC/LDPE Supplier, Heat Shrink film plant, Ahmedabad, Gujarat, India

Models

THS-38

THS-50

THS-65

Screw Diameter

38 mm

45 mm

65 mm

Screw L/D Ratio

23:1

23:1

23:1

Extruder Motor KW

5.0 KW

7.5 KW

11.2 KW

Out put Kg/Hr

18-22

28-32

35-50

Primary Take up motor KW

0.32

0.32

0.75

Secondary Take up  motor KW

0.75

0.75

1.5

Orientation Unit Heating load

9 KW

12 KW

15 KW

Centre type Winder stations

04

04

04

Total connected load

22.6 KW

31.0 kW

41.0 kW

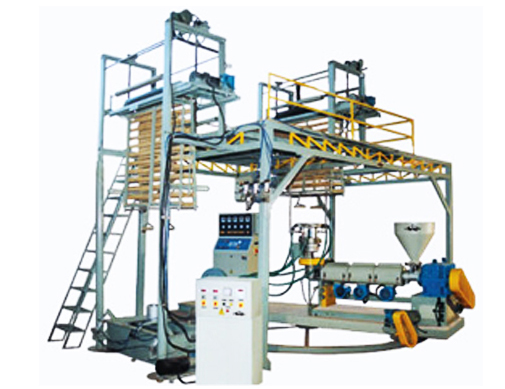

Plants having Extruder on rotating plate farm with helical gear box, temperature & control panel, Two take up units, Total three sets of Nip rollers rotated by variable speed motors. coupled with reduction gear boxes, Orientation hot water bath unit and four station centre type winder.

Note:

  • Plant with Rotating dies instead of rotating plate farm extruder are also available.
  • Choice to select from above three models.

LDPE shrink Film plants are also available. Features will be similar to LDPE blown film plant.
