Blown Film Plants sincerely implements the attributes of corporate performance, machineries, and after-sales customer care. We are closely interact with the client—before, during, and after the sale of the machinery.


RPVC/HDPE/PP-PE Pipe, Profile ,Trunking Plants With Single Screw Extruder ...

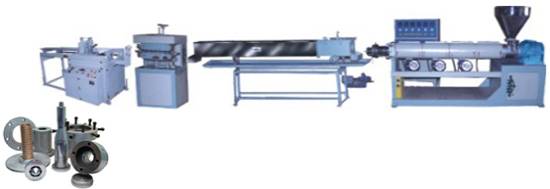

Rpvc Pipe / Profile / Trunking / Casing - Capping Extrusion Plants
(Single screw)
Rpvc Pipe Capping Extrusion Plants, Rpvc Extrusion Plants Manufacturer
MODELS
TCP-50
TCP-65
TCP-75
TCP-90
TCP-100
Screw Diameter
mm 50 65 75 90 100
L/D Ratio
- 24:1 24:1 24:1 24:1 24:1
Main Motor
KW 10 15 22.4 30 37.3
Output
Kg./Hr. 24-35 30-60 40-80 100-125 130-150
Pipe O.D. Min.
mm 12 12 19 25 50
Pipe O.D. Max.
mm 50 62 80 110 150

We are affianced in manufacturing Plastic machineries along with Blown Film Plant, Twin Screw Extrusion Plant and PVC Pipe Extrusion Plant. Our PVC Extrusion Plant is made from utmost quality material in accordance with the international standards. Due to its high-end features like flexible strength, corrosion resistance, longer functional life and robust construction, our range has been accredited by the clients, located across the domestic market.

Enriched with vast industrial experience, we also export our qualitative range of Plastic Extrusion Plants sourced from reliable vendors of the industry. With the assistance of skilled and dedicate professionals, we offer our clients wide range of RPVC Capping Extrusion Plants in varied sizes at reasonable price.

Jocky Extruder


Blown Film Plants holds proficiency in offering Jockey Extruder Machines to our valuable clients. The machine is suitable for silicone and synthetic rubber applications. These are acclaimed among our clients for their robust construction, high efficiency and ease operation. Our machines are available at industrial leading price

All our machines are fabricated from best quality raw material under the strict supervision of our diligent quality controllers. These are available at cost-effective prices

MODELS   TJE-25 TJE-32 TJE-38
Screw diameter mm 25 32 38
L/D Ratio - 28:1 28:1 28:1
Main Motor KW 2.2 3.73 5.6
Out put Kg./hr. 5 - 7 10-12 15 - 18
