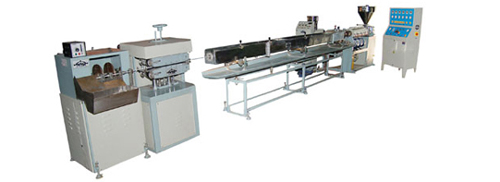

| Non Toxic Medical Tube Plant |
| |
Models |
TTX-32 |
TTX-38 |
TTX-45 |
| L/D Ratio |
26:1 |
26:1 |
26:1 |
| Tube Size Range |
1 to 20 mm |
1 to 32 mm |
3 to 38 mm |
| Extruder Motor |
3.75 KW |
5.00 KW |
7.50 KW |
| Tube Puller Motor |
0.375 KW |
0.75 KW |
0.75 KW |
| Output Kg/Hour |
12-14 |
19-22 |
28-32 |
| Total Connected Load |
7.4 KW |
9.7 KW |
13.5 KW |
On line cutting units will be different for different products and customized with customer’s requirement. Magnetic clutch brake and encoder is required for very precise and accurate cutting. Winder with traverse assembly is provided for flexible tubes, if required. Die and calibrating systems will be different for different items/tubes/profiles.
|
In profile involved in providing that high quality PVC Tubes, HD, PP Plastic tubing, Sleeve that are supplied to buyers across the world. The display of PVC Tubes is presented in various shapes, sizes and specifications. The PVC Tubes collection is experienced for value by our quality controllers to make the range devoid of all flaws. The PE Pipes presented by us are made from high quality material ensuring their best possible power and durability. In PE Cable Pipes in different colors, thicknesses and lengths as for each their requirements. Particularly flexible with brilliant memory. Pvc Sleeves manufacturer as per dimensions and drawings provided by the client unique think about is taken to maintain and others uses wherever flexible, transparent, soft polymer tubes are required. |
