MODELS		THP-50	THP-65	THP-75	THP-90	THP-100	THP-125	THP-150
Screw Diameter	mm	50	65	75	90	100	125	150
L/D Ratio	-	30:1	28:1	28:1	28:1	28:1	26:1	26:1
Main Motor	KW	9.5	15	22	30	37.5	56	85
Output	Kg./Hr.	24-35	30-60	40-80	100-125	130-150	150-200	250-300
Pipe O.D. Min.	mm	12	12	19	25	50	75	110
Pipe O.D. Max.	mm	75	65	90	110	150	250	350

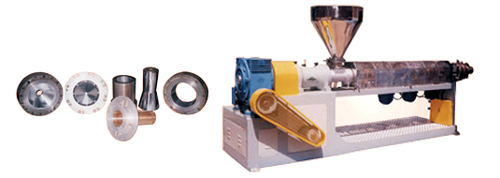

We are Manufacturer & exporter of single screw for HDPE / PP /RPVC pipe, LDPE / HDPE pipe/Jocky Extruder division and a lot of added. Existing in unique sizes according to supplies & product sizes. Plant comprising of Extruder by way of sliding part, Temperature control panel, AC variable drive, Vacuum Chamber, Water bath tank, water pump, pipe cutter. Our range of plastic extruder features ease of operation, high quality manufacture facility, durability & consistency.

We are well-known for submission best deals in the production. It is Polythene hose pipe unit, HDPE/LDPE pipe unit, Garden Hose pipe unit, Processing Extruders for LDPE/HDPE/PP/Pvc Material.

Optional : Belt up down movement and grip pressure by hydraulic cylinder for slipless pulling is also available.

HDPE Drip Irregation Pipe Plant With Jocky Extruder
