PVC Braided Hose Plant, Suction Hose Plant Manufacturer

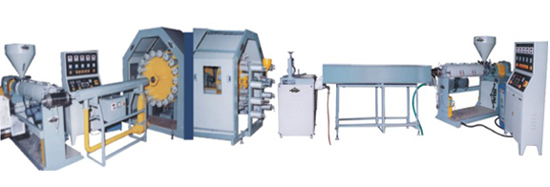

PVC Braided/Suction Hose Plant


We are engraved in manufacturing and exporting PVC Braided Hose Plant. Our PVC Suction Hose Pipe Plant is made from high grade components and is available in different sizes. These are multipurpose hose which can be used for air compressors, water suction and Delivery.

Braided Hose Plant is operated with suitable drive DC motor; the offered range possesses two plats in rotating clock & anti clock wise direction. In addition to this, one of the plates of these plants is fitted for the straight thread. The range is durable, perfect in design and resistant to wear and tear. We offer customization facility to serve the specific requirements of clients. We are among the top supplier of Blown Film Plants from India.

Features:

  • Sturdy Construction
  • High Applicability
  • Durability
  • Braided Machine



Suction Hose Plant, Suction Hose Plant Exporters & Manufacturers

BRAID HOSE MAKING PLANT
MODELS
Screw diameter mm
L /D Ratio
Extruder Motor
Out put
Hose Size range
Tubing
Extruder
Coating
Extruder
Tubing
Extruder
Coating
Extruder
Kg /hr Diameter
mm
TBH 5050
50 50 26:1 7.5 7.5 40-60 5 to 25
TBH 5065
50 65 26:1 7.5 11.2 60-80 5 to 32
TBH 6565
65 65 26:1 11.2 11.2 80-100 10 to 50



SUCTION HOSE MAKING PLANT
MODELS
Screw diameter mm
L /D Ratio
Extruder Motor
Out put
Hose Size range
RPVC
Extruder
Soft PVC
Extruder
RPVC
Extruder
Soft PVC
Extruder
Kg /hr Diameter
mm
TBH 5065
50 65 23:1&26:1 7.5 11.2 60-80 19 to 100
TBH 6565
65 65 23:1&26:1 15.0 11.2 80-100 50 to 150
