Manufacturer and Exporter of High Speed Mixer, Heater Cooler Mixer, High Shear Mixers and High Speed Mixer Suppliers based in Ahmedabad, Gujarat

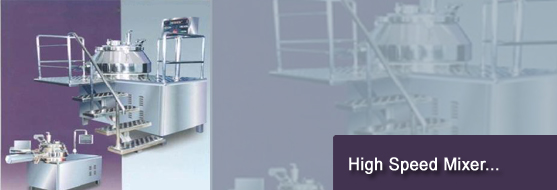

High Speed Mixer
We are etched in manufacturing and supplying wide range of High Speed Mixers made from supreme quality material and appreciated for its high performance.
These mixers are composed of two vessels and a single agitator. They are made up of top quality stainless steel, these mixers have large capacity which ensure in mixing of large amount of substances and produce required amount of object.
The high-speed dispersers are used extensively in the processing of Newtonian products, where the saw tooth impeller works at high peripheral speed. These mixers consume very less energy and are capable of mixing the hardcore material. We supply a variety of speed mixers and Blown Film Plants according to various requirements and specifications of the customers and industry.
Models
HM-35*
HM-130
HM-210
HM-250
HM-300
Vessel volume in liters
35
130
210
250
300
Mixing tool motor capacity with dual speed motor
4 - 5 HP
16-20 HP
31-40 HP
43-51 HP
50-60 HP
--- DO --- with single speed motor
5.0 HP
15 HP
40 HP
50 HP
60 HP
Max. Mixing capacity per batch
10 Kg
40 Kg
60 Kg
80 Kg
100 Kg
Max. Out put Kg per hr.
40-50
160-200
240-300
320-400
400-500
*HM-35 model is laboratory model mixer. This model available with cooler mixer also.
Motor capacity mentioned in above table is for making RPVC compound. Motor capacity will be higher than mentioned for making plasticized/ soft PVC compounds.
