Blown Film Plants Energy Efficient Real Power saver Plants Also available SINGLE Film plant with DOUBLE DIE Spiral Die head with Rotating die, Maintenance Free slip-rin.

Energy Efficient Real Power saver Plants Also available SINGLE Film plant with DOUBLE DIE Spiral Die head with Rotating die, Maintenance Free slip-rin

Blown Film Plants And Compact Film Plants ...






High Output HM-HDPE / LDPE Compact Blown Film Plant ...

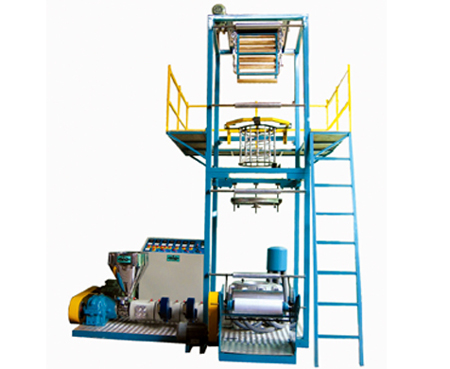

High Output HM-HDPE/LDPE Compact Blown Film Plant

LDPE/HDPE & LLDPE film also from the same plant proven and tested technology and Performane

MODELS
TCHM - 32
TCHM - 38
TCHM - 45
TCHM - 55
Screw Die. 32 mm 38 MM 45 mm 55 mm
Extruder Motor 5.0 KW 9.5 kw 15 KW 18.5 KW
Die type Spiral Spiral Spiral Spiral
Lay flat width 75-300 mm 100-450 mm 150-600 mm 200-850 mm
Max. Output 18-22 Kg/hr 40-43 Kg/hr 55-65 Kg/hr 75-85 KG/hr
Nip Roller 500 mm 650 mm 800 mm 1000
Winder Surface Surface Surface Surface
Connected Load 11.5 KW 19.5 KW 26.5 KW 37.0 KW

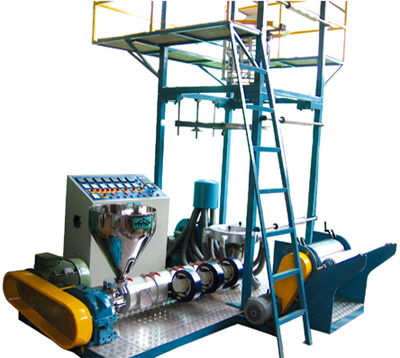

COMPACT BLOWN FILM PLANT

High Output HM-HDPE/LDPE Compact Blown Film Plant Manufacturers

SPECIFICATION COMPACT BLOWN FILM PLANT
Plasma - Gas Nitride hardened Barrel and high output Screw.
Energy efficient and extruder application Helical Gear box.
Temperature and control panel board with PID Digital temprature controllers, MBCs, switches, Ameters, connectors and Main Switch.
AC drives for Extruder and nip roller motor.
Film embossing (RimZim) roller mounting arrangement
Surface Winder with Torque motor and controller.
Minimum electrical consumption per kg production.
Real Space saving. Choice for changeability of winder position suitable to your space - in line or right angle to take up nip roller.
Energy efficient Real power saver plants Also available SINGLE Film plant with DOUBLE DIE Spiral Die head with Rotating die, Maintence Free slip-ring & brush less.
